Intel Socket 115X / 1200 75x75 (D15S series)

D15S series

(for LGA 115X/ 1200 75x75-S series)

D15S stands for the “Special purpose –needed” designs in REGO coolers for Intel LGA115X/ 1200 series and indicated to our families as:
>> D15S1 for 1U (RG31xx)
>> D15S2 for 2U (RG32xx)
>> D15S3 for 3U (RG33xx).

[Meets]
1U & 2U & 3U Coolers, TDP: 35 to 245 Watts

[Features & Benefits]
High quality, high reliability, lower noise level, long term supply, customization available

>>　Target Market　<<
AI Edge Computing
Server Based IPC
Gaming mini PC
Industrial Box PC
Embedded Boards
Medical AIO PC

P/N : RG3118

[Ultra Slim]

TDP: 65W
Outline Dimension : 90 x 90 x 15 mm
Heat Sink : Stacked Fin / Copper
Fan : 70 x 70 x 10 mm, Two Ball Bearing, 4800RPM, Noise Level : 43dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.50 ℃/W
Weight : 255 g

2D 3D Report

P/N : RG3124-BF(Z)

[Lateral Reinforcement]

TDP: 65W
Outline Dimension : 90 x 90 x 27.5 mm
Heat Sink : Stacked Fin / Copper
Blower : 80 x 80 x 15 mm, Two Ball Bearing, 5500RPM, Noise Level : 58.1dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.39℃/W
Weight : 330 g

2D 3D Report

P/N : RG3124AF-BF(Z)

[Lateral Reinforcement +]

TDP: 65W
Outline Dimension : 90 x 90 x 27.5 mm
Heat Sink : Stacked Fin / Copper
Blower : 80 x 80 x 15 mm, Two Ball Bearing, 6600RPM, Noise Level : 64 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.35℃/W
Weight : 350 g

2D 3D Report

P/N : RG3114

[Lite & Slim]

TDP: 65W
Outline Dimension : 83 x 83 x 25.5 mm
Heat Sink : Stacked Fin / Copper
Fan : 70 x 70 x 10 mm, Two Ball Bearing, 5500RPM, Noise Level : 46 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.44℃/W
Weight : 260 g

2D 3D Report

P/N : RG3114-BF(Z)

TDP: 65W
Outline Dimension : 90 x 90 x 27.5mm
Heat Sink : Stacked Fin / Copper
Blower : 80 x 80 x 15 mm, Two Ball Bearing, 4650RPM, Noise Level : 59 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.43℃/W
Weight : 330 g

2D 3D Report

P/N : RG3114(Z)

TDP: 65W
Outline Dimension : 90 x 90 x 22.5mm
Heat Sink : Stacked Fin / Copper
Fan : 70 x 70 x 10 mm, Two Ball Bearing, 5500RPM, Noise Level : 46 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.45℃/W
Weight : 310 g

2D 3D Report

P/N : RG3211A

[Lite & Cool]

TDP: 65W
Outline Dimension : 88 x 88 x 36.6 mm
Heat Sink : Extruded Aluminum
Fan : 70 x 70 x 10 mm, Two Ball Bearing, 5500RPM, Noise Level : 46 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.37℃/W
Weight : 255 g

2D 3D Report

P/N : RG321A

[Slim & Cool]

TDP: 65W
Outline Dimension : 83 x 83 x 35.9 mm
Heat Sink : Stacked Fin Copper
Fan : 70 x 70 x 10 mm, Two Ball Bearing, 5500RPM, Noise Level : 46 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.33℃/W
Weight : 380 g

2D 3D Report

P/N : RG3215

[2U Lite]

TDP: 65W
Outline Dimension : 88 x 88 x 51.6 mm
Heat Sink : Extruded Aluminum
Fan : 70 x 70 x 25 mm, Two Ball Bearing, 5400RPM, Noise Level : 46dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.38 ℃/W
Weight : 325 g

2D 3D Report

P/N : RG321B

[2U Cool]

TDP: 65W
Outline Dimension : 83 x 83 x 50.6 mm
Heat Sink : Stacked Fin Copper
Fan : 70 x 70 x 25 mm, Two Ball Bearing, 5400RPM, Noise Level : 46dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.29 ℃/W
Weight : 420 g

2D 3D Report

P/N : RG3216

[2U Coolest]

TDP: 150W
Dimension : 88.7 x 88.7 x 65.6 mm
Heat Sink : Stacked Fin Aluminum, Integrated with heat pipes
Fan : 60 x 60 x 25 mm, Two Ball Bearing, 7500RPM, Noise Level : 45dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.18 ℃/W
Weight : 350 g

Download 3D Report

P/N : RG3216-SN43

[2U Lightest]

TDP: 65W
Outline Dimension : 88.7 x 88.7 x 43 mm
Heat Sink : Stacked Fin Aluminum, Integrated with heat pipes
Fan : 38 x 38 x 28 mm, Two Ball Bearing, 20000RPM, Noise Level : 64.7dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.35 ℃/W
Weight : 230 g

2D 3D Report

P/N : RG3216B

TDP: 150W
Outline Dimension : 88 x 88 x 65 mm
Heat Sink : Copper Stacked Fin , Copper Base
Fan : 60 x 60 x 25 mm, Two Ball Bearing, 7700RPM, Noise Level : 48dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.21 ℃/W
Weight : 644 g

2D 3D Report

P/N : RG3216C

TDP: 150W
Outline Dimension : 90 x 90 x 65 mm
Heat Sink : Aluminum Stacked Fin integrated Heat pipes , Copper Base
Fan : 60 x 60 x 25 mm, Two Ball Bearing, 7700RPM, Noise Level : 48dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.21 ℃/W
Weight : 419 g

2D 3D Report

P/N : RG3328

[Close to Liquid-cooled]

TDP: 245W
Outline Dimension : 95.8 x 94.9 x 120 mm
Heat Sink : Aluminum Stacked Fin integrated Heat pipes , Copper Base
Fan : 92 x 92 x 25 mm, Two Ball Bearing, 4500RPM, Noise Level : 54dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.11 ℃/W
Weight : 592 g

2D 3D Report

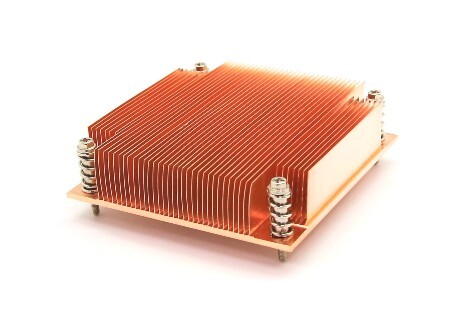

P/N : RG3128-P

TDP: 95W
Outline Dimension : 88 x 88 x 24 mm
Heat Sink : Skived Copper
Thermal Resistance : 0.20 ℃/W @ 800LFM
Weight : 406 g

2D 3D Report

Features
>> Lower Noise Level
>> Long term supply
>> Fast samples
>> Harsh-conditions allowed
>> Semi-customization available
Specification
Part Number RG3118 RG3124-BF(Z) RG3124AF-BF(Z) RG3114 RG3114-BF(Z) RG3114(Z) RG3211A RG321A RG3215 RG321B RG3216 RG3216-SN43 RG3216B RG3216C RG3328 RG3128-P
CPU Socket Intel Desktop 115X/1200 35~65W Intel Desktop 115X/1200 65W Intel Desktop 115X/1200 65W Intel Desktop 115X/1200 65W Intel Desktop 115X/1200 65W Intel Desktop 115X/1200 65W Intel Desktop 115X/1200 65W Intel Desktop 115X/1200 65W Intel Desktop 115X/1200 65W Intel Desktop 115X/1200 95W Intel Desktop 115X/1200 150W Intel Desktop 115X/1200 65W Intel Desktop 115X/1200 150W Intel Desktop 115X/1200 150W Intel Desktop 115X/1200 245W Intel Desktop 115X/ 1200 95W
Outline Dimension (mm) 90 x 90 x 15 90 x 90 x 27.5 90 x 90 x 27.5mm 83 x 83 x 25.5 mm 90 x 90 x 27.5 90 x 90 x 22.5 88 x 88 x 36.6 83 x 83 x 35.9 88 x 88 x 51.6 83 x 83 x 50.6 88.7x88.7x65.6 88.7x88.7x43 88x88x65 90x90x65 95.8x94.9x120 88x88x24
Rth (℃/W) 0.50 0.39 0.35 0.44 0.43 0.45 0.37 0.33 0.38 0.29 0.18 0.35 0.20 0.21 0.11
Fan Spec 70x70x10mm/ 4way/ 4800 RPM/ 43dB(A) 80x80x15mm/ 4way/ 5500 RPM/ 58.1dB(A) 80x80x15mm/ 4way/ 6600 RPM/ 64dB(A) 70x70x10mm/ 4way/ 5500 RPM/ 46dB(A) 80x80x15mm/ 4way/ 4650 RPM/ 59dB(A) 70x70x10mm/ 4way/ 5500 RPM/ 46dB(A) 70x70x10mm/ 4way/ 5500 RPM/ 46dB(A) 70x70x10mm/ 4way/ 5500 RPM/ 46dB(A) 70x70x25mm/ 4way/ 5400 RPM/ 46dB(A) 70x70x25mm/ 4way/ 5400 RPM/ 46dB(A) 60x60x25mm/ 4way/ 7500 RPM/ 45dB(A) 38x38x28mm/ 4way/ 20000 RPM/ 64.7dB(A) 60x60x25mm/ 4way/ 7500 RPM/ 48dB(A) 60x60x25mm/ 4way/ 7500 RPM/ 48dB(A) 92x92x25mm/ 4way/ 4500 RPM/ 54dB(A) N/A
Heat Sink Material Copper Stacked Fin Copper Stacked Fin Copper Stacked Fin Copper Stacked Fin Copper Stacked Fin Copper Stacked Fin Aluminum Extruded Fin Copper Stacked Fin Aluminum Extruded Fin Copper Stacked Fin Aluminum Stacked Fin with Heat Pipe Aluminum Stacked Fin with Heat Pipe Copper Stacked Fin Aluminum Stacked Fin with Heat Pipe with Copper Base EAluminum Stacked Fin with Heat Pipe with Copper Base Copper Skived Fin
Datasheet
RG3118
PDF
RG3124-BF(Z)
PDF
RG3124AF-BF(Z)
PDF
RG3114
PDF
RG3114-BF(Z)
PDF
RG3114(Z)
PDF
RG3211A
PDF
RG321A
PDF
RG3215
PDF
RG321B
PDF
RG3216
PDF
RG3216-SN43
PDF
RG3216B
PDF
RG3216C
PDF
RG3328
PDF
RG3128-P
PDF
