MAR series (for AMD Ryzen Embedded V1000/ V2000/ R1000)

MAR series

(for AMD Ryzen Embedded V1000/ V2000/ R10001)

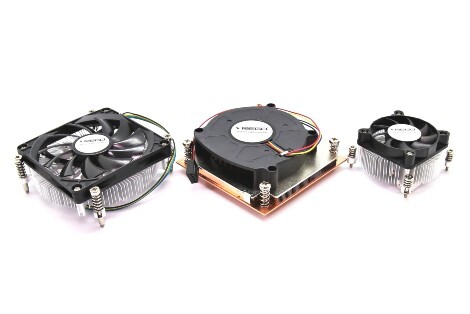

MAR1/ MAR3 stand for the coolers designed for AMD Embedded applications in Ryzen series and indicated to our RG11xx/ RG31xx families.

[Meets]
MAR1 - 1U Coolers
MAR3 - 2U Coolers
TDP : 35 Watts to 55 Watts

>> Applied <<
AMD : FP3, FP4 & FP5 Coolers

[Features & Benefits] -
A full range of products, customized technology, high quality, high reliability, lower noise level, long term supply

>> Target Market <<
Industrial PC (IPC)
Point of Sale(POS)
Embedded Board
Gaming
Kiosk
Medical

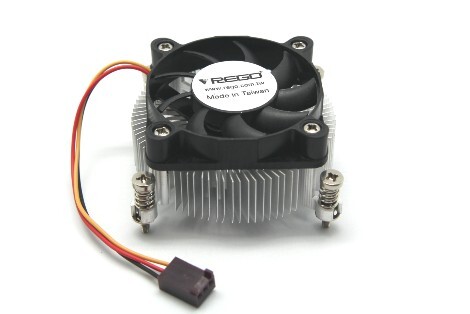

P/N : RG1100B-EAL-EF5173-26.5

(for V1202B)

TDP: 12~ 25W
Outline Dimension : 60 x 60 x 28mm
Heat Sink : Extruded Aluminum Radial Fin, Φ26.5 AL Base
Fan : 50 x 50 x 10 mm, Two Ball Bearing, 7500 RPM, Noise Level : 43 dB(A)
Connector Type : 2695-3P
Thermal Resistance : 0.77 ℃/W
Weight : 80 g

Download

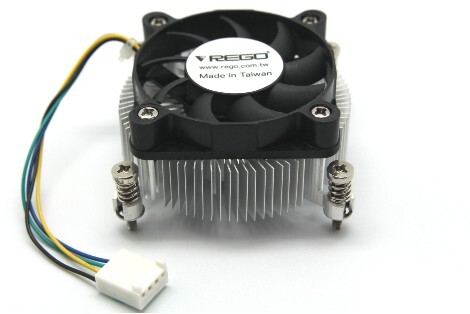

P/N : RG1100B-EAC-EF5174-28

(for V1605B)

TDP: 12~ 25W
Outline Dimension : 60 x 60 x 28mm
Heat Sink : Extruded Aluminum Radial Fin, Φ28 Copper Base
Fan : 50 x 50 x 10 mm, Two Ball Bearing, 7500 RPM, Noise Level : 43 dB(A)
Connector Type : 2695-4P
Thermal Resistance : 0.68 ℃/W
Weight : 120 g

Download

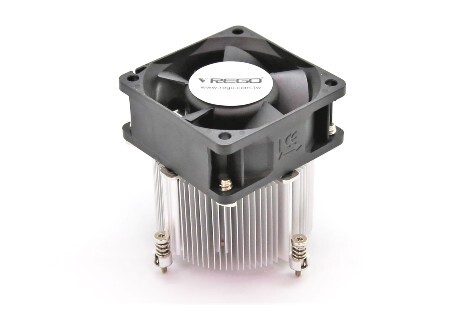

P/N : RG1100B-EAC(H38)-SN62104-28

(for V1807B/ V1756B/ V2748/ V2546)

TDP: 35~ 54W
Outline Dimension : 60 x 60 x 64.4mm
Heat Sink : Extruded Aluminum Radial Fin, Φ28 Copper Base
Fan : 60 x 60 x 25 mm, Two Ball Bearing, 10600 RPM, Noise Level : 60.5 dB(A)
Connector Type : 2510-4P
Thermal Resistance : 0.47 ℃/W
Weight : 301 g

Download

P/N : RG3129M-25

(for V1807B/ V1756B/ V2748/ V2546)

TDP: 35~ 54W
Outline Dimension : 90 x 90 x 25.5mm
Heat Sink : Extruded Aluminum Radial Fin, Copper Base
Blower : 80x80x15mm, Two Ball Bearing, 4500 RPM, Noise Level : 43 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.44 ℃/W
Weight : 234 g

Download

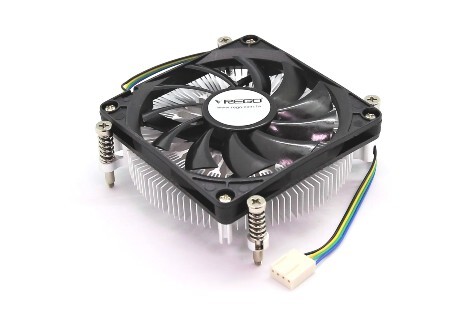

P/N : RG3219M-50

(for V1605B/ V1202B)

TDP: 12~ 25W
Outline Dimension : 90 x 90 x 50.4mm
Heat Sink : Extruded Aluminum Radial Fin
Blower : 80x80x25mm, Two Ball Bearing, 4800 RPM, Noise Level : 48 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.44 ℃/W
Weight : 272 g

Download

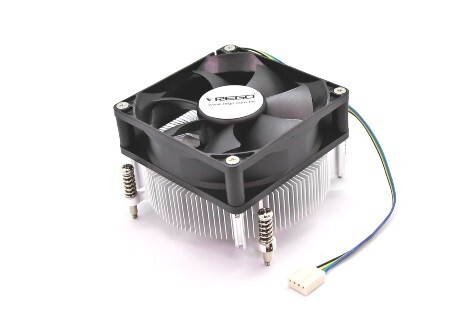

P/N : RG3229M-50

(for V1807B/ V1756B/ V2748/ V2546)

TDP: 35~ 54W
Outline Dimension : 90 x 90 x 50.4mm
Heat Sink : Extruded Aluminum Radial Fin, Copper Base
Blower : 80x80x25mm, Two Ball Bearing, 4800 RPM, Noise Level : 48 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.33 ℃/W
Weight : 383 g

Download

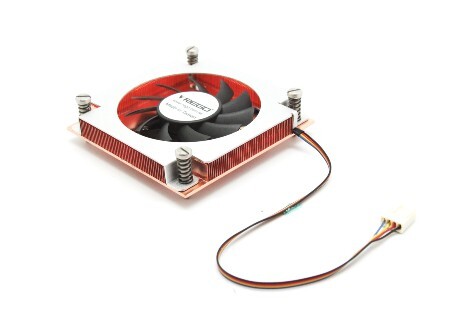

P/N : RG3118

(for V1605B)

TDP: 12~ 25W
Outline Dimension : 90 x 90 x 15mm
Heat Sink : Stacked Fin Copper
Fan : 70x70x10mm, Two Ball Bearing, 4800 RPM, Noise Level : 43 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.65 ℃/W
Weight : 255 g

Download

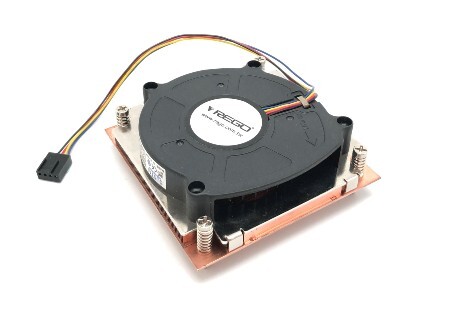

P/N : RG3124M-BF(Z)

(for V1807B/ V1756B/ V2748/ V2546)

TDP: 35~ 54W
Outline Dimension : 90 x 90 x 27.5mm
Heat Sink : Stacked Fin Copper
Blower : 80x80x15mm, Two Ball Bearing, 5500 RPM, Noise Level : 62.8 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.55 ℃/W
Weight : 330 g

Download

>> Support Boost-up TDP up to:
    - 75W for V1807B
    - 70W for V1756B
    - 30W for V1605B
    - 27W for V1202B/ V2718/ V2716/ R1605G/ R1505G
>> Lower Noise Level
>> Long term supply
>> Fast samples
>> Semi-customization available
Part Number RG1100B-EAL-EF5173-26.5 RG1100B-EAC-EF5174-28 RG1100B-EAC(H38)-SN62104-28 RG3129M-25 RG3219M-50 RG3229M-50 RG3118 RG3124M-BF(Z)
CPU Socket FP5/ FP6/ 12~25W FP5/ FP6/ 12~54W FP5/ FP6/ 35~54W FP5/ FP6/ 35~54W FP5/ FP6/ 35~54W FP5/ FP6/ 35~54W FP5/ FP6/ 12~54W FP5/ FP6/ 35~54W
Outline Dimension (mm) 60 x 60 x 28 60 x 60 x 28 60 x 60 x 60.4 90 x 90 x 25.5 90 x 90 x 50.4 90 x 90 x 50.4 90 x 90 x 15 90 x 90 x 27.5
Rth (℃/W) 0.77 0.68 0.47 0.44 0.44 0.33 0.65 0.55
Fan Spec 50x50x10mm 3way 7500 RPM 43dB(A) 50x50x10mm 4way 7500 RPM 43dB(A) 60x60x25mm 4way 10600 RPM 60.5dB(A) 80x80x10mm 4way 4500 RPM 43dB(A) 80x80x25mm 4way 4800 RPM 48dB(A) 80x80x25mm 4way 4800 RPM 48dB(A) 70x70x10mm 4way 4800 RPM 43dB(A) 80x80x15mm 4way Blower 5500 RPM 62.8dB(A)
Heat Sink Material Extruded Aluminum Extruded Aluminum with Copper Base Extruded Aluminum with Copper Base Extruded Aluminum with Copper Base Extruded Aluminum Extruded Aluminum with Copper Base Copper Stacked Fins Copper Stack Fins
