LGA1700/ 1800 Basic (D17 series)

D17 series

(for LGA1700/ LGA1800)

D17 stands for the entry-leveled solutions in REGO coolers designed for Intel LGA1700/ 1800 Alder Lake-S CPU series and indicated to our RGD3x2x families.

[Meets]
1U/ 2U/ 3U Coolers, TDP : 35 Watts to 125 Watts

[Features & Benefits]
High quality, high reliability, lower noise level, long term supply, customization available.

>> Target Market <<
AI Edge Computing
Server Based IPC
Gaming mini PC
Industrial Box PC
Embedded Boards
Medical AIO PC

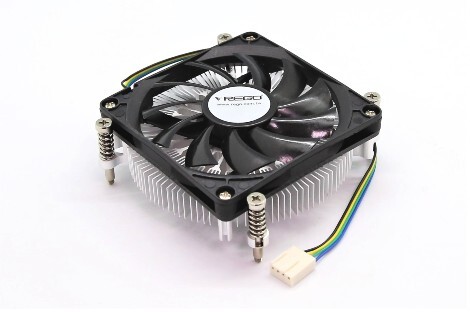

P/N : RGD3129-25-002

TDP: 65W
utline Dimension : 90 x 90 x 25.5mm
Heat Sink : Extruded Aluminum Radial Fin / Copper Base
Fan : 80 x 80 x 11.3 mm, Two Ball Bearing, 4500RPM, Noise Level : 43 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.332 ℃/W
Weight : 234 g

Download

P/N : RGD3129-35B-002

TDP: 65W
Outline Dimension : 90 x 90 x 35mm
Heat Sink : Extruded Aluminum Radial Fin / Copper Base
Fan : 80 x 80 x 20 mm, Two Ball Bearing, 5500RPM, Noise Level : 53.5 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.308 ℃/W
Weight : 264 g

Download

P/N : RGD3229-50-002

TDP: 65W
Outline Dimension : 90 x 90 x 50.4mm
Heat Sink : Extruded Aluminum Radial Fin / Copper Base
Fan : 80 x 80 x 25 mm, Two Ball Bearing, 4800RPM, Noise Level : 48 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.225 ℃/W
Weight : 385 g

Download

P/N : RGD3229-60E-002

TDP: 65~125W
Outline Dimension : 90 x 90 x 60.4mm
Heat Sink : Extruded Aluminum Radial Fin / Copper Base
Fan : 80 x 80 x 25 mm, Two Ball Bearing, 4800RPM, Noise Level : 48 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.203 ℃/W
Weight : 504 g

Download

P/N : RGD3226-002

TDP: 65~125W
Outline Dimension: 90 x 90 x 67 mm
Heat Sink: Aluminum Stacked Fin integrated with Heat pipes
Fan: 60 x 60 x 25 mm, Two Ball Bearing, 7500RPM, Noise Level : 45dB(A)
Connector Type : 2543-4P
Thermal Resistance: 0.194 ℃/W
Weight: 359 g

Download

P/N : RGD3328A-002P

TDP: 125W
Outline Dimension : 105 x 92.5 x 125 mm
Heat Sink : Aluminum Stacked Fin integrated Heat pipes, Copper Base
Fan : 92 x 92 x 25 mm, Two Ball Bearing, 4500RPM, Noise Level : 54dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.106 ℃/W
Weight : 592 g

Download

- Lower Noise Level
- Long term supply
- Fast samples
- Semi-customization available
Part Number RGD3129-25-002 RGD3129-35B-002 RGD3229-50-002 RGD3229-60E-002 RGD3226-002 RGD3328A-002P
CPU Socket Intel Desktop LGA1700 / 65W Intel Desktop LGA1700 / 65W Intel Desktop LGA1700 / 65W Intel Desktop LGA1700 65~125W Intel Desktop LGA1700 5~125W Intel Desktop LGA1700 / 125W
Outline Dimension (mm) 90 x 90 x 25.5 90 x 90 x 35 90 x 90 x 50.4 90 x 90 x 60.4 90 x 90 x 67 105x92.5x125 mm
Rth (℃/W) 0.332 0.308 0.225 0.203 0.194 0.106
Fan Spec 80x80x10mm
4way
4500 RPM
43dB(A)
80x80x20mm
4way
5500 RPM
53.5dB(A)
80x80x25mm
4way
4800 RPM
48dB(A)
80x80x25mm
4way
4800 RPM
48dB(A)
60x60x25mm
4way
7500 RPM
45dB(A)
92x92x25mm
4way
4500 RPM
54dB(A)
Heat Sink Material Extruded Aluminum with Copper Base Extruded Aluminum with Copper Base Extruded Aluminum with Copper Base Extruded Aluminum with Copper Base Aluminum Stacked Fin
with Heat Pipe Base
Aluminum Stacked Fin
with Heat Pipe Copper Base
RGD3129-25-002
PDF
RGD3129-35B-002
PDF
RGD3229-50-002
PDF
RGD3229-60E-002
PDF
RGD3226-002
PDF
RGD3328A-002P
PDF
