LGA1700/ 1800 2U, 125W (D17A series)

D17A series

(for LGA1700/ LGA1800 2U)

D17A stands for the “Advanced” cooling solutions for Intel LGA1700/ 1800 Alder Lake-S CPU series and indicated to our RGD322x families.

[Meets]
2U Coolers, TDP: 125 Watts

[Features & Benefits]
High quality, high reliability, lower noise level, long term supply, customization available

>> Target Market <<
AI Edge Computing
Server Based IPC
High Performance Computing(HPC)

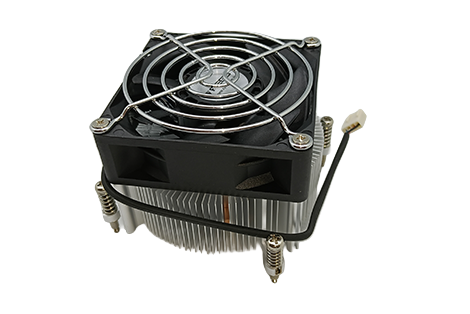

P/N : RGD3229G-60-002

TDP: 125W
Outline Dimension: 90 x 90 x 66 mm
Heat Sink : Extruded Aluminum Radial Fin with Graphite Coated and Copper Base
Fan : 80 x 80 x 25 mm, Two Ball Bearing, 9500RPM, Noise Level : 65 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.171℃/W
Weight : 585 g

2D 3D Report

P/N : RGD3224VC-002

TDP: 125W
Outline Dimension: 93 x 93 x 67.6mm
Heat Sink : Stacked Copper Fin with Vapor Chamber Base
Fan : 80 x 80 x 25 mm, Two Ball Bearing, 9500RPM, Noise Level : 65 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.120℃/W
Weight : 641 g

2D 3D Report

P/N : RGD3226VCHP-002

TDP: 125W
Outline Dimension: 90 x 90 x 65.5 mm
Heat Sink : Stacked Aluminum Fin integrated with Heat Pipes & Vapor Chamber Base
Fan : 60 x 60 x 25 mm, Two Ball Bearing, 10600RPM, Noise Level : 60.5 dB(A)
Connector Type : 2543-4P
Thermal Resistance : 0.129 ℃/W
Weight : 442 g

2D 3D Report

P/N : RGD3224VC-EF48-002

TDP: 125W
Outline Dimension: 93 x 93 x 62.9mm
Heat Sink: Stacked Copper Fin with Vapor Chamber Base
Fan: 80 x 80 x 25 mm, Two Ball Bearing, 4800RPM, Noise Level: 48 dB(A)
Connector Type: 2543-4P
Thermal Resistance: 0.150℃/W
Weight: 572 g

2D 3D Report

P/N : RGD3224VC-AG70-002

TDP: 125W
Outline Dimension: 93 x 93 x 69.5mm
Heat Sink: Stacked Copper Fin with Vapor Chamber Base
Fan: 80 x 80 x 32 mm, Two Ball Bearing, 7000RPM, Noise Level: 58.5 dB(A)
Connector Type: 2543-4P
Thermal Resistance: 0.130℃/W
Weight: 611 g

2D 3D Report

P/N : RGD3226VCHP-EF75-002

TDP: 125W
Outline Dimension: 91.6 x 90 x 65.5 mm
Heat Sink: Stacked Aluminum Fin integrated with Heat Pipes & Vapor Chamber Base
Fan: 60 x 60 x 25 mm, Two Ball Bearing, 7500RPM, Noise Level: 45 dB(A)
Connector Type: 2543-4P
Thermal Resistance : 0.140 ℃/W
Weight: 433 g

2D 3D Report

- Lower Noise Level
- Long term supply
- Fast samples
- Semi-customization available
Part Number RGD3229G-60-002 RGD3224VC-002 RGD3226VCHP-002 RGD3224VC-EF48-002 RGD3224VC-AG70-002 RGD3226VCHP-EF75-002
CPU Socket Intel
LGA1700
125W
Intel
LGA1700
125W
Intel
LGA1700
125W
Intel
Desktop
LGA1700 / 125W
Intel Desktop LGA1700 / 125W Intel Desktop LGA1700 / 125W/td>
Outline Dimension (mm) 90 x 90 x 66 93 x 93 x 67.6 90 x 90 x 65.5 93 x 93 x 62.9 93 x 93 x 69.5 91.6 x 90 x 65.5
Rth (℃/W) 0.171 0.120 0.129 0.150 0.130 0.140
Fan Spec 80x80x25mm
4 Way
9500 RPM
65dB(A)
80x80x25mm
4 Way
9500 RPM
65dB(A)
60x60x25mm
4 Way
10600 RPM
60.5dB(A)
80x80x25mm
4way
4800 RPM
48dB(A)
80x80x32mm
4way
7000 RPM
58.5dB(A)
60x60x25mm
4way
7500 RPM
45dB(A)
Heat Sink Material Aluminum Radial Fin with Graphite Coated and Copper Base Stacked Copper Fin with Vapor Chamber Base Stacked Aluminum Fin integrated with Heat Pipes & Vapor Chamber Base Copper Stacked Fin with Vapor Chamber Base Copper Stacked Fin with Vapor Chamber Base Aluminum Stacked Fin with Heat Pipes with Vapor Chamber Base
RGD3229G-60-002
PDF
RGD3224VC-002
PDF
RGD3226VCHP-002
PDF
RGD3224VC-EF48-002
PDF
RGD3224VC-AG70-002
PDF
RGD3226VCHP-EF75-002
PDF
