>> Lower Noise Level
>> Long term supply
>> Fast samples
>> Semi-customization available

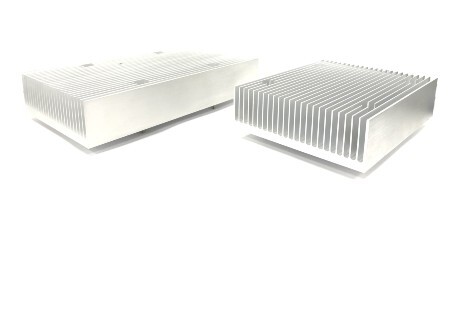

MAE series (for AMD EPYC™ Embedded 3000)
MAE series
(for AMD EPYC™ Embedded 3000)
MAE stands for the coolers designed for AMD Embedded applications in EPYC series and indicated to our RG511xx families.
[Meets]
1U Passive Coolers, TDP : 100 Watts
[Features & Benefits]
High quality, high reliability, long term supply, cost saving, customization available
>> Target Market <<
Networking
Communication
NAS
Storage Area Network (SAN)
Industrial Application

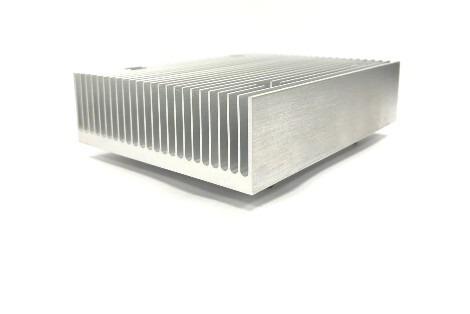

RG5110
TDP: 100W
Outline Dimension : 100mm x 78 x 25.5mm
Heat Sink : Extruded Aluminum
Thermal Resistance : 0.45 ℃/W ( tested with 2 x 4028 11000RPM Fan )
Thermal Resistance : 0.37 ℃/W ( tested with 2 x 4028 17600RPM Fan )
Weight : 200 g

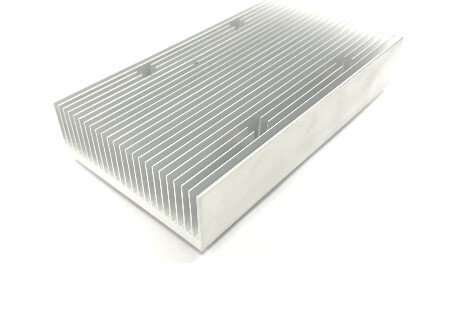

RG5111
TDP: 100W
Outline Dimension : 140mm x 78 x 25.5mm
Heat Sink : Extruded Aluminum
Thermal Resistance : 0.44 ℃/W ( tested with 2 x 4028 11000RPM Fan )
Thermal Resistance : 0.36 ℃/W ( tested with 2 x 4028 17600RPM Fan )
Weight : 280 g
| Part Number | RG5110 | RG5111 |
| CPU Socket | AMD EPYC™ Embedded 3000 | AMD EPYC™ Embedded 3000 |
| Outline Dimension (mm) | 100mm x 78 x 25.5mm | 140mm x 78 x 25.5mm |
| Rth (℃/W) | 0.45 | 0.44 |
| Fan Spec | Tested with 2 x 4028 11000RPM Fan | Tested with 2 x 4028 11000RPM Fan |
| Heat Sink Material | Extruded Aluminum | Extruded Aluminum |
