SA6 series (for AMD SP6)

SA6 series
(for AMD Socket SP6, LGA4844)

SA6 stands for the REGO CPU coolers mainly used in Server applications, made for AMD SP6 series and indicated to our RGM5xxx families as listed below:

[Meets]
1U & 2U Coolers
TDP: 155 to 225 Watts
Active/ Passive Available

[Features & Benefits]
High quality, high reliability, lower noise level, long term supply, customization available.

>>　Target Market　<<
Server based IPC
Server
Storage
Medical
Telecommunication

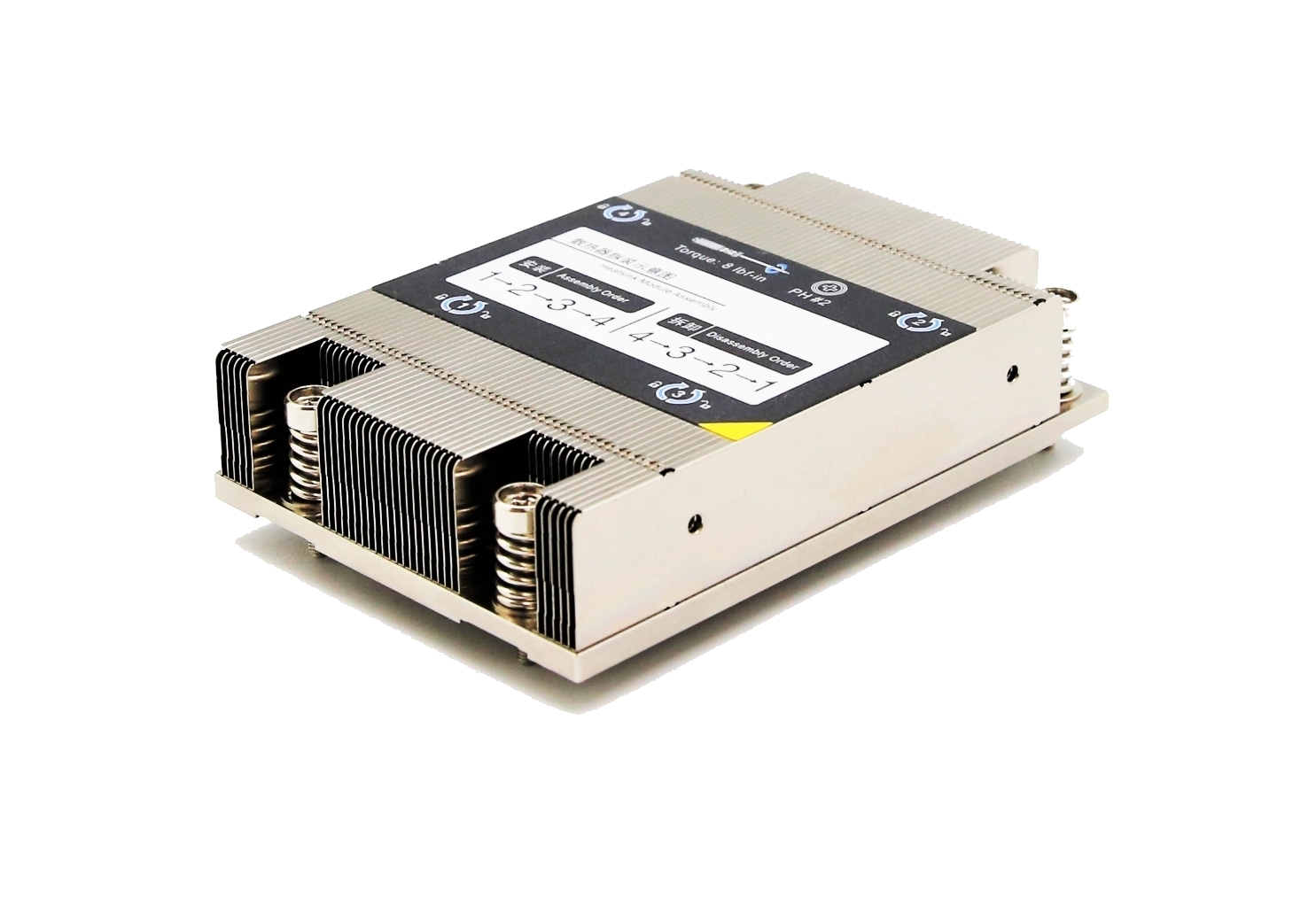

P/N : RGM5110-P

TDP: 155W
Outline Dimension : 118 x 80 x 26mm
Heat Sink : Stacked Aluminum Fins, Copper Base with 3 heat pipes
Thermal Resistance : 0.143℃/W @40CFM
Weight : 273 g

2D 3D Report

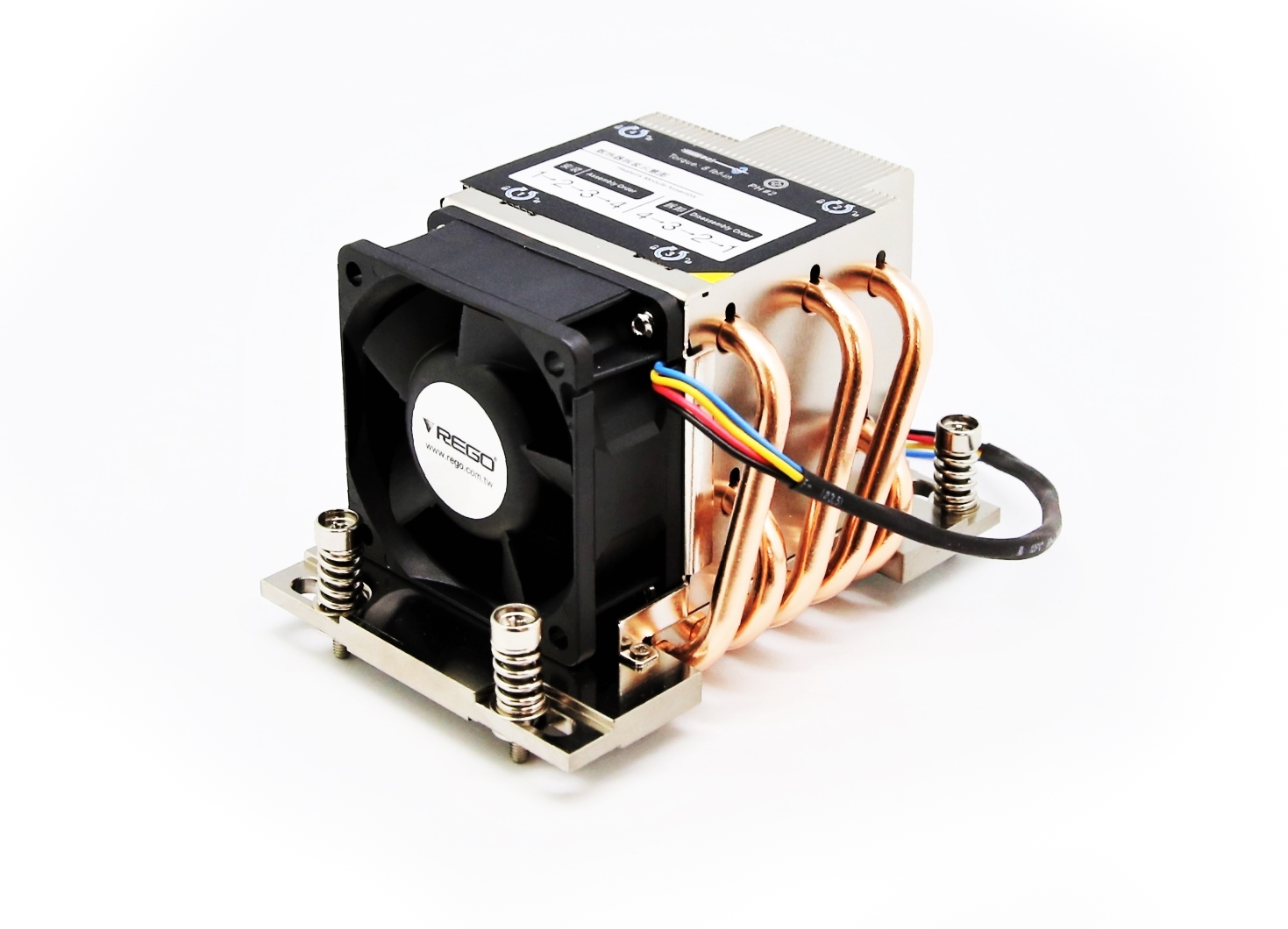

P/N: RGM5220

TDP: 225W
Outline Dimension : 118 x 92.4 x 66.3mm
Heat Sink : Stacked Aluminum Fins, Copper Base with 5 heat pipes
Fan: 60 x 60 x 25 mm, Two Ball Bearing, 7000RPM, 36.977CFM, 50.7dB(A), Connector Type : 2543-4P
Thermal Resistance : 0.129 ℃/W
Weight : 465 g

2D 3D Report

Features

>> Lower Noise Level
>> Long term supply
>> Fast samples
>> Harsh-conditions allowed
>> Semi-customization available

Specification

Part Number	RGM5110-P	RGM5220
CPU Socket	AMD SP6	AMD SP6
TDP (min.) Thermal Dissipation Performance	155W	225W
Outline Dimension (mm)	118 x 92.4 x 25	118 x 92.4 x 66.3
Rth (℃/W)	0.143 @40CFM	0.129
Fan Spec	N/A	60x60x25mm 4way/ 7000 RPM/ 50.7dB(A)
Heat Sink Material	Aluminum Stacked Fins Copper Base w/ heat pipes	Aluminum Stacked Fins wtih heat pipes
